倒置電動平臺

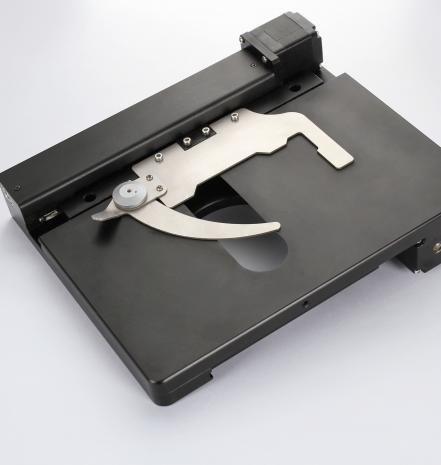

Motorized Stage
Suitable for most major brand microscopes.
Fine Special Screw, Stepping Motor, Limit Switch, RS-232C Adaptor.
The characteristic of DMC and DFI series motorized stage of microscope as the following:
Stage for Upright and Invert Microscope
1.The outside looking is smart and popular, and the stage is elegant and beautiful design. The stage can be matched with some famous brand’s microscope perfectly. While the DMC series motorized stage of microscope is easy to be interchange.
2. Computer software control: The computer software can control the stage in X/Y and Z direction by the controller. So it can realize the function of multi-view field auto-moving and auto focusing, as well as auto picture, auto return and auto control etc;

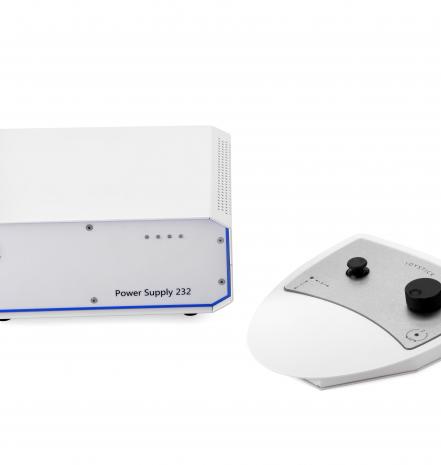

3. Joystick control: fully motorized stage moving and focusing can also be controlled by the joystick via the controller. In the future we will offer other control like the signal control and so on.
4. Hand-control: Beside motorized control our stage provide hand control knob which maintain the habit of hand control for some customer.
5. The max- edge setting: the both side of the stage, they has the max- edge setting which make sure the safety of sample.
我們提供的倒置電動平臺可以用在各種規格和型號的倒置金相和倒置生物顯微鏡上, 客戶在需要電動平臺時只需要提供顯微鏡的品牌和型號就可以。 特別的, 我們公司在配套像尼康,奧林帕斯,蔡司,徠卡和國內主要品牌,我們有著豐富的經驗。
例如:
電動平臺 | 倒置生物 | 平臺尺寸 : 270x214mm |
移動范圍 : 120x100mm |

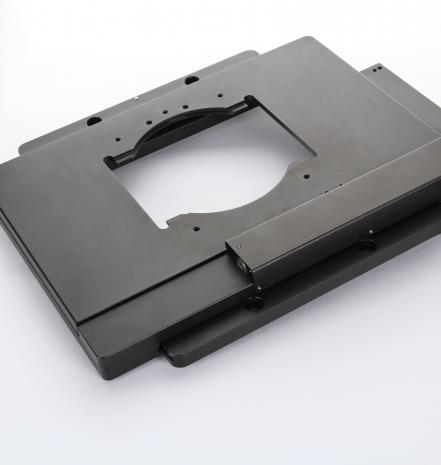

倒置電動平臺
參數 | 正置 | 倒置 |
圖片 | ||
型號 | DMC500 | DFI900 |
平臺尺寸 | 203×180×64mm | 330x250x58mm |
移動范圍 | 72×52mm | 114x75mm |
絲桿螺距 | 2.438mm | 2.438mm |
細分 | Step Motor1.8° | Step Motor 1.8° |
重復精度 | ±5um | ±2.5μm |
最小步長 | 0.1um | 0.1um |
正交角度 | <20" | <20" |
平行度 | 1μm|25mm | 1μm|25mm |
最大承重 | 8KGS | 2KGS |
限位軸 | X,Y, Axis | X,Y, Axis |
選項 | Z Axis | Z Axis |
電源 | 24V 0.6A | 24V 0.6A |
匹配KOZO牌顯微鏡型號 | XJS900,XJM900, XJP900,XJF900 | KXD700 |
匹配Nikon型號 | TE200/2000 | |
匹配Olympus型號 | IX51/71/81 | |
匹配 Zeiss 型號 | AxioVert 40/200 |
如果你需要更高精度,我們可以加編碼器。
