Infinity (Plan) f′=200mm(Tube Lens)High NA Objective Wave Range: 400nm -700nm Focus Length: 45.06mm
This series objectives image is very sharp, with one good transsmition rate. while 10x, 20x and 40x are multi objective for reflecting light and translating light.
Covering NIR wave.
Like 10X also covering NUV wave.
Upright Fluoresence Obejctive
1. Infinity (Plan) f′=200mm(Tube Lens)High NA Objective Wave Range: 400nm -700nm Focus Length: 45.06mm
放大倍數(shù) Magnification | 規(guī)格型號 Model | 數(shù)值孔徑 NA | 工作距離 WD(mm) | 焦距 f’ (mm) | 分辨率 R (μm) | 焦深 DF (μm) | 物方視場 on object (mm) | 像方視場 on image (mm) | 螺紋尺寸 Screw |
10x | Fluorescence-10X | 0.40 | 3.6 | 20.0 | 0.74 | 1.65 | 2.2 | 22.0 | 0.8” |
20x | Fluorescence-20X | 0.80 | 0.6 | 10.0 | 0.45 | 0.59 | 1.1 | 22.0 | 0.8” |
40x | Fluorescence-40X | 0.95 | 0.17 | 5.0 | 0.35 | 0.37 | 0.55 | 22.0 | 0.8” |
100x(Water) | Fluorescence-100X(W) | 1.20 | 0.16 | 2.0 | 0.28 | 0.23 | 0.22 | 22.0 | 0.8” |

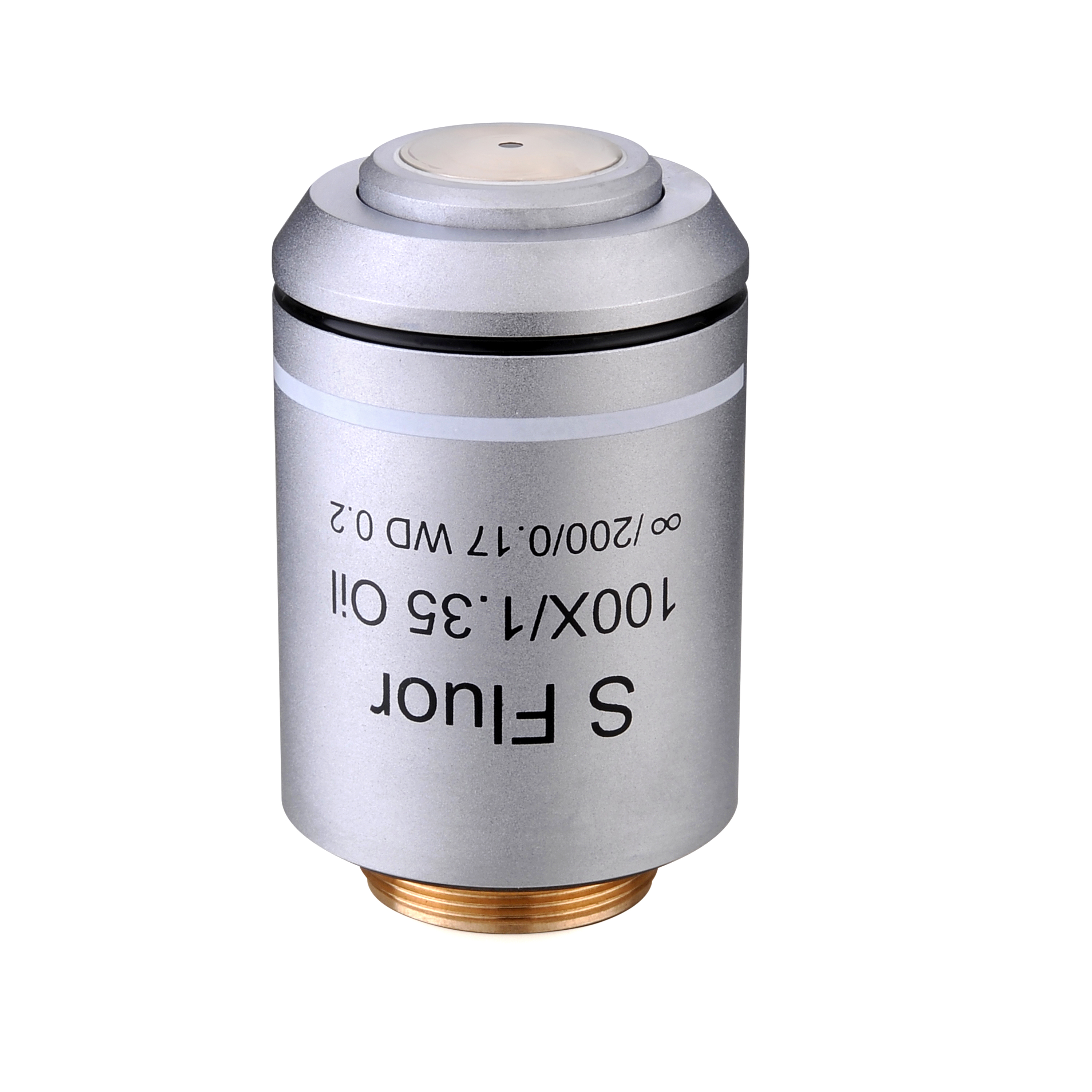

100x(Oil) | Fluorescence-100X(O) | 1.35 | 0.08 | 2.0 | 0.25 | 0.18 | 0.22 | 22.0 | 0.8” |
