Top Optical & Mechanical Design
Greenough optical system, built-in rotating shaft zoom system.
No tilting Image in two light path in complete pupillary distance , No dizziness feeling after long time observing.
Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration.
Various Accessories,Complete Function.

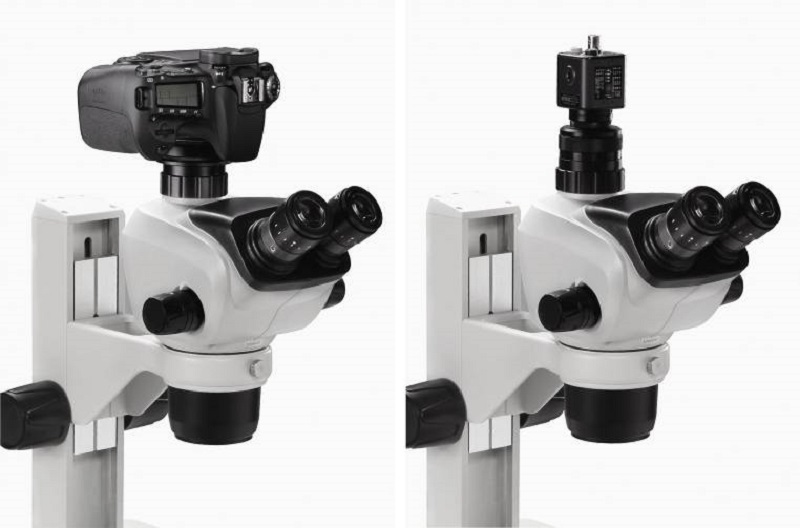

Different video output connectors, built-in digital image model.
Illumination optional: LED, halogen lamp, cold light source etc. (100V-240V wide voltage input).

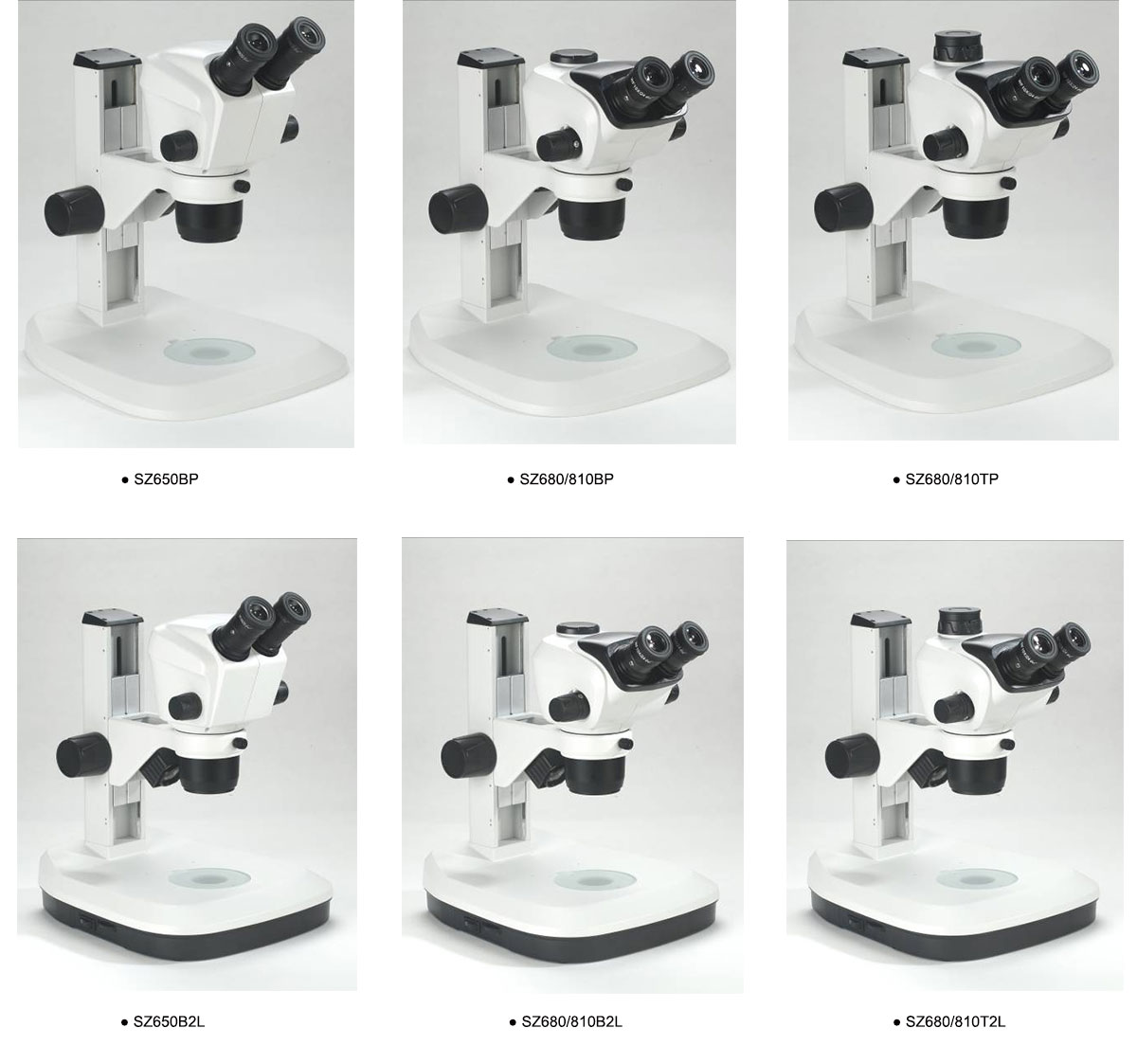

Various professional stands and operating attachments.
XSZ6835 | |
Head Observation | Binocular,35° |
Trinocular,35° | |
Interpupillary Adjustment | 50-75mm |
Zoom ratio | 1:6.8 |
Magnification Range | 0.68X~4.7X |
Working Distance | 110mm |
Field of View | 23mm |
Photographic camera output spectral ratio | 100% |
Observation, photography synchronous output select 50%:50% | |
Integer multiplier lattice | Can be accurately positioned at each integer multiple |
Focus stroke (mm) | 115 |
Focus stroke of square post bracket (mm) | 80 |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
