XJF200

Category: Fluorescence Microscope

Model:XJF200

Magnification: 40X--1000X

Transmitted light: 6V30W halogen lamp, adjustable brightness

Reflected light:100W/DC mercury lamp

1. Introduction

XJF200 Epifluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan

achromatic objectives and wide field eyepieces, have clear picture and wide view field. It is the ideal instrument in biology, cytology, oncology,

genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Features:

▲ With wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ 20W 6V halogen lamp with electronic dimmer

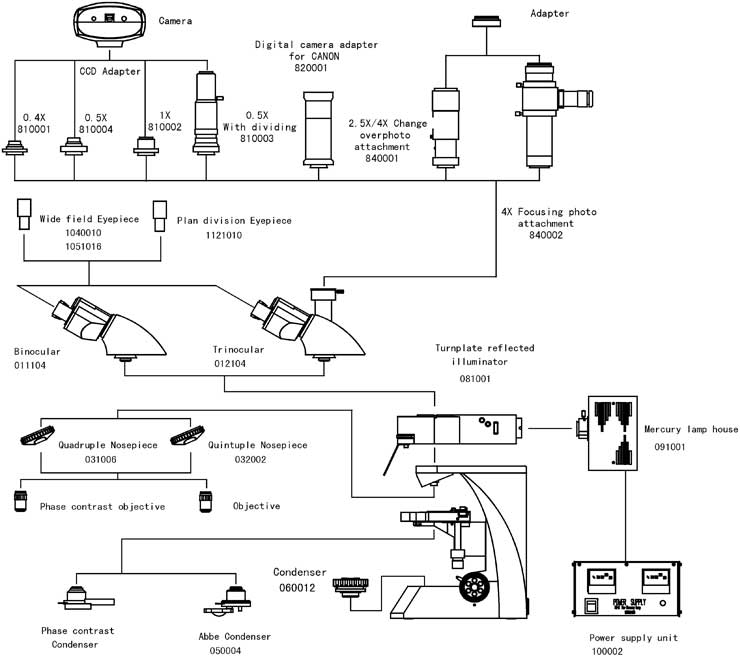

2. Structure


3. Imaging


Specification			XJF200
Eyepiece	WF10X/20mm		●
	WF10X/20mm with reticule, 0.10mm/Divide		○
	WF16X/11mm		○
Nosepiece	Quadruple(Backward ball bearing inner locating)		●
	Quintuple(Backward ball bearing inner locating)		○
Eyepiece tube	Trinocular (Inclination of 30°)		●
	Binocular(Inclination of 30?)		○
Objective	Infinity plan achromatic Objectives PL 4X/0.10		●
	Infinity plan achromatic Objectives PL 10X/0.25		●
	Infinity plan achromatic Objectives PL 20X/0.40		○
	Infinity plan achromatic Objectives PL 40X/0.65(Spring)		●
	Infinity plan achromatic Objectives PL 100X/1.25(Spring, oil)		●
Phase contrast unit	Eyepiece	Centering telescope	○
	Objectives	Infinity phase contrast plan achromatic 10X/0.25 PHP	○
		Infinity phase contrast plan achromatic 20X/0.40 PHP	○
		Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)	○
		Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)	○
	(PH) Turnplate phase contrast condenser		○
	(PH) Turnplate phase contrast condenser		○
	Flashboard phase contrast condenser		○
	Pull board phase contrast condenser		○
Stage	Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)		●
Filter	Blue		●
	Frosted glass		●
	Green		○
	Yellow		○
Condenser	Abbe condenser NA.1.25 Rack & pinion adjustable		●
Focus System	Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.		●
Reflected fluorescence system	Mercury lamp house 100W/DC		●
	Power supply unit:AV:110V or 220V		●
	Fluorescence filter system B exciton wavelength:450~490nm		●
	Fluorescence filter system G exciton wavelength:495~555nm		●
	Fluorescence filter system UV exciton wavelength:320~380nm		●
	Fluorescence filter system V exciton wavelength:380~415nm		●
Transmitted Illumination	Collector for halogen lamp		●
	6V 20W Halogen lamp ,adjustable brightness		●
C-Mount	0.4X		○
	0.5X		○
	1X		○
	0.5X with dividing 0.1mm/Div		○
Camera	With USB & video output		○
	With USB output		○
	With video output		○
Digital camera adapter	CANON digital camera adapter(A610,A620,A630,A640)		○
Photograph unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece		○
	4X Focusing photograph attachment		○
	MD Adapter		○
	PK Adapter		○
Weight/Volume	15.6KGS/ 49.53565CM

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
