It is used extensively world medical research and health care, biology, botany research and agriculture, as well as in electronic component manufacturing.

It is special suited for LED, PCB inspection, pressing plating and electronic component inspection.

The XTL6445 with 0.7x~4.5x zoom magnification, inclination angles of 45° respectively.


Specification					XTL6445B	XTL6445T
Optical System	Greenough Optical System				●	●
Viewing Head	Binocular 45° inclined, 360° rotatable, (54-75mm), Diopter Adjustment±5				●
Viewing Head	Trinocular 45° inclined, 360° rotatable, (54-75mm), Diopter Adjustment±5					●
C-Mount	1X C-Mount					○
	1/2 C-Mount					○
	1/3 C-Mount					○
Eyepiece	Objective	Magnification Range	Field of View	Working Distance
WF10X/20mm	1x	7X-45X	28.6-4.4mm	100mm	●	●
	0.5x	3.5X-22.5X	57.1-8.9mm	165mm	○	○
	1.5x	10.5X-67.5X	19.0-3.0mm	45mm	○	○
	2x	14X-90X	14.3-2.2mm	30mm	○	○
WF15X/15mm	1x	10.5X-67.5X	21.1-3.3mm	100mm	○	○
	0.5x	5.25X-33.75X	42.8-6.7mm	165mm	○	○
	1.5x	15.75X-101.25X	14.3-2.2mm	45mm	○	○
	2x	21X-135X	10.7-1.7mm	30mm	○	○
WF20X/10mm	1x	14X-90X	14.3-2.2mm	100mm	○	○
	0.5x	7X-45X	28.6-4.4mm	165mm	○	○
	1.5x	21X-135X	9.5-1.5mm	45mm	○	○
	2x	28X-180X	7.1-1.1mm	30mm	○	○
WF25X/9mm	1x	17.5X-112.5X	12.9-2.0 mm	100mm	○	○
	0.5x	8.85X-56.3X	25.4-4.0mm	165mm	○	○
	1.5x	26.2X-168.8X	8.6-1.3mm	45mm	○	○
	2x	35X-225X	6.4-1.0mm	30mm	○	○
WF30X/8mm	1x	21X-135X	11.4-1.8mm	100mm	○	○
	0.5x	10.5X-67.5X	22.9-3.6mm	165mm	○	○
	1.5x	31.5X-202.5X	7.6-1.2mm	45mm	○	○
	2x	42X-270X	5.7-0.9mm	30mm	○	○

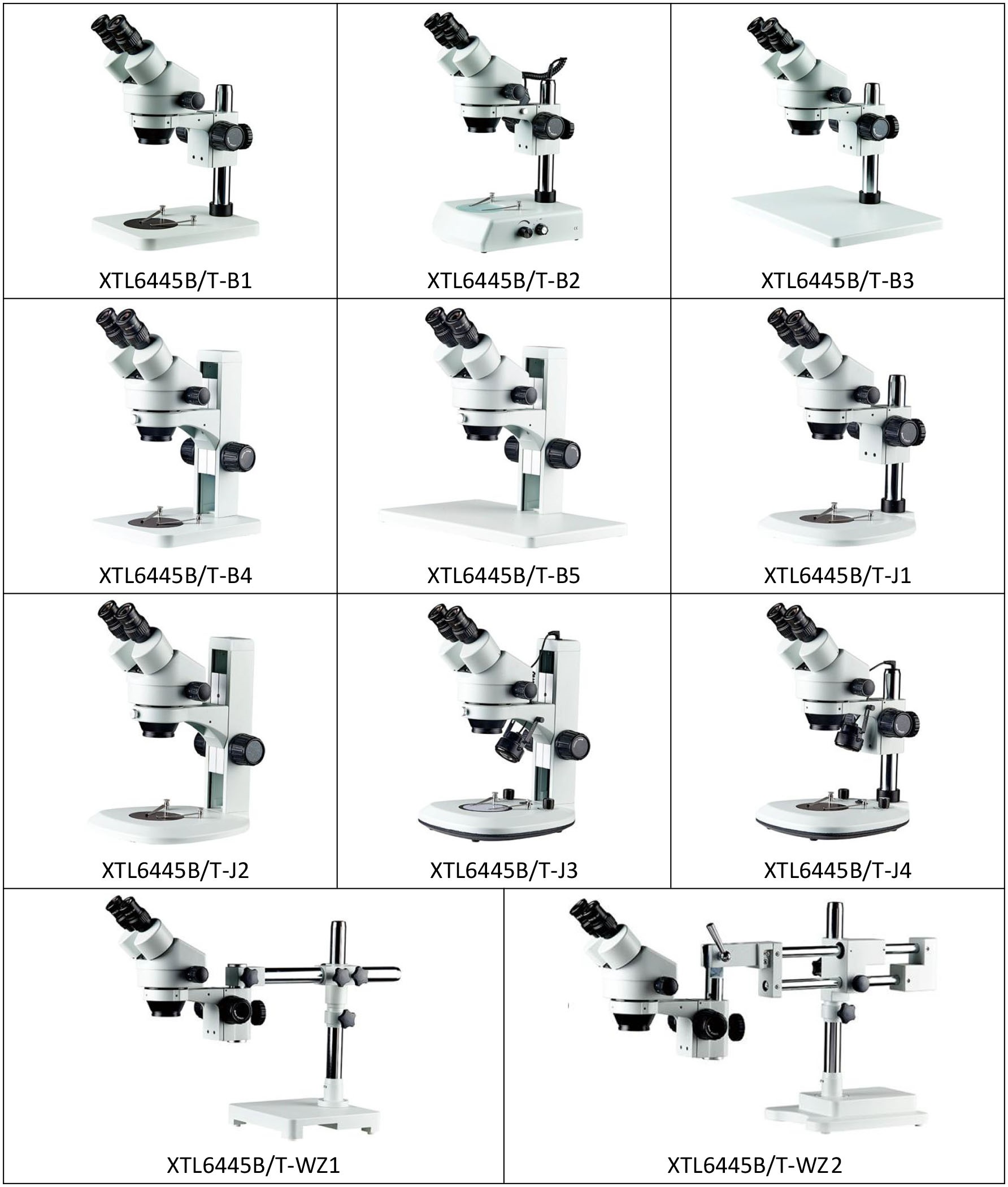

STAND	B1	Post Stand without Illumination			○	○
	B2	Post Stand with 12V15W halogen Illumination			○	○
	B2L	Post Stand with 5V3W LED Illumination			○	○
	B3	Post Stand Without Illumination, Base Size:260X320MM			○	○
	B4	Track Stand without Illumination			○	○
	B5	Track Stand without Illumination, Base Size:260X320MM			○	○
	J1	Post Stand without Illumination			○	○
	J2	Track Stand without Illumination			○	○
	J3	Track Stand with 5V3W LED Illumination			○	○
	J392	Track Stand with 5V3W LED Illumination (Bottom 92 Spots)			○	○
	J4	Post Stand with 5V3W LED Illumination			○	○
	J492	Post Stand with 5V3W LED Illumination (Bottom 92 Spots)			○	○
	WZ1	Boom Stand without Illumination			○	○
	WZ2	Dual Boom Stand without Illumination			○	○
